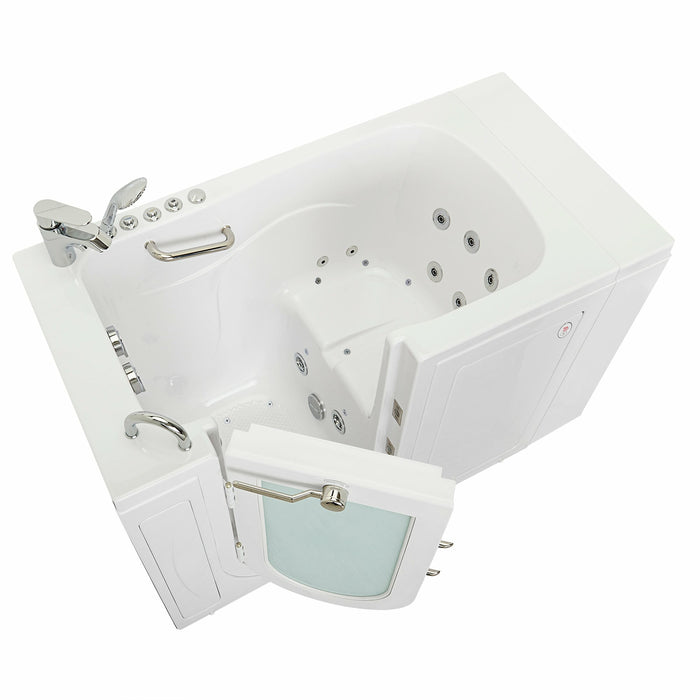

The walk-in tub shell of the Capri is constructed with premium acrylic in a white glossy finish, supported by a stainless-steel frame with adjustable leveling legs, and reinforced with fiberglass gel coat layers. The nonporous acrylic surface is easy to clean and impermeable to mold and mildew. A textured floor, low step-in threshold, one deck and one wall mounted U-shape stainless steel grabs in a chrome finish, enhance your safety and allow quick and safe entry and exit in and out of the tub.

This standard size walk-in tub measures at 30”W x 52”L and has a comfortable 20” wide seat. The Capri’s main feature is the door which is made from industrial grade durable plastic composite material with a decorative tempered glass screen to conceal the mechanical door lock system.

The door is 19 1/4” wide, and swings outward from the tub to allow the bathers to comfortably enter and exit the tub. The outward swing door also creates more interior space, which allows bathers to effortlessly sit into the molded seat, pull the door and lock it. Ella U-Shape outward swinging doors use a gear and shaft driven 3-latch door lock that edges out our competition, who typically use a single latch/lever system. A 3-latch door system creates a more secure and watertight door seal, providing you with a safe, leak-free bathing experience.

Product Features

• Dual Drain Technology, consisting of two independent 2” gravity driven drains with four 2” outlets, 2 overflows and 2 drain openers, allowing for a fast and reliable drainage.
• 2 caps are also included to cover up to 2 of 4 ports if needed.
• The 2” drain outlets can be connected to the standard 1 ½” house drain with a T or Y fitting and piping provided by a professional plumber.
• It is suggested to connect all 4 outlets to the house drain for the fastest drainage possible.
• Typical drainage time is approximately +/- 80 seconds for this standard size tub within ideal in-home plumbing conditions.
• Ella gravity driven dual drains are fast and reliable because they do not require an electric pump, whereas electrical driven drains may fail due to electrical shorts or power outages.
• This model also includes one reversible end panel for left or right corner installation options and one extension filler panel kit for 60” alcove installations.
• The reversible end panel is used to cover the end of the tub that is exposing the walk-in tub shell.
• An additional end panel can be ordered if your tub will be installed against the wall with both ends exposed.

Therapy & Jetting

Hydro + Air Massage System

The Capri walk-in tub has sixteen (16) strategically placed air jets in order to deliver rejuvenating therapeutic relief. Eight (8) upper, fixed flat jets work to provide relief to your back, hips and thighs, while an additional eight (8) jets located in the lower foot area deliver a gentle massage to your feet and calves. Additionally, two (2) of the eight (8) upper jets are bidet jets.

The air massage system includes an air pump with a 3-speed variable push control, strategically positioned air jets for optimal therapeutic relief, and auto-purge to maintain an air system free of any build ups.

Ella’s Air Jet System includes an Auto Purge System. It automatically activates 20 minutes after completing your bath in order to blow out any excess water and bacteria from the air jet lines. Auto-purge will run for 120 seconds to ensure your system is clear and free of moisture and excess water helping to prevent mildew build up.

Optional Features

1. Controller Options

We offer two control options: Push Control or Digital Control. Our Push Controls are easy-to-use push down buttons that will operate your chosen jetting and any additional features.

The digital control is our more modern option, giving you a digital keypad from which to control your jets and additional features such as Chromatherapy LEDs and heated seat & backrest. Since the Digital Control is smaller, it may be more difficult for elderly to see and operate.

2. Ella 4-Fold Glass Shower Screen in Chrome Finish for Walk-In Tubs

The Ella brand 4-fold shower screen is the best option in the industry for walk-in tubs because of the foldable feature that’s not offered with a standard shower glass or curtains. This gives bathers an airy, open feeling with the option to easily push the screen aside. The lightweight glass, secured in an aluminum frame with quality gear hinges, is sturdy enough to endure rigorous daily use. Additionally, one of the 4-fold sections can be removed to create a 3-fold shower screen.



Relax with a rejuvenating full body massage, or experience a powerful foot massage in minutes!

---

Ella Gravity Driven 2″ Dual Drain Technology

The best fast drain in industry – no power required! Ella gravity driven 2″ dual drain technology with independently operated 2 openers, 2 overflows for fast and reliable drainage and exit out of the walk-in tub. This drain can be connected to 4 x 2 inch outlets vs. one 1 1/2″ standard bathtub drain.



Gear & Shaft Driven 3-Latch Out-Swing Door

Our unique gear and shaft driven 3-latch door edges out our competition who typically use a single latch/lever system. A 3-latch door system provides a more secure and watertight door seal than the conventional single latch system, providing you with a leak-free bathing experience.



---
